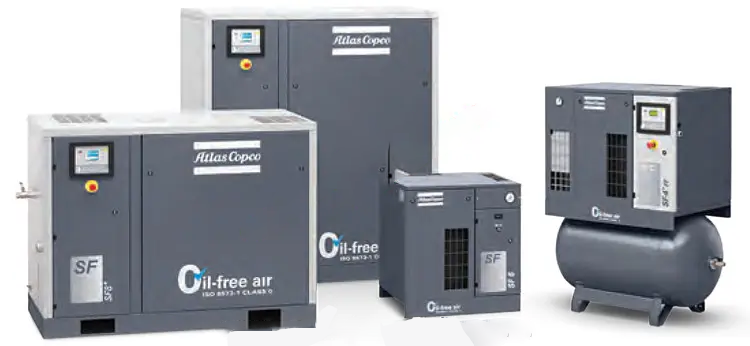

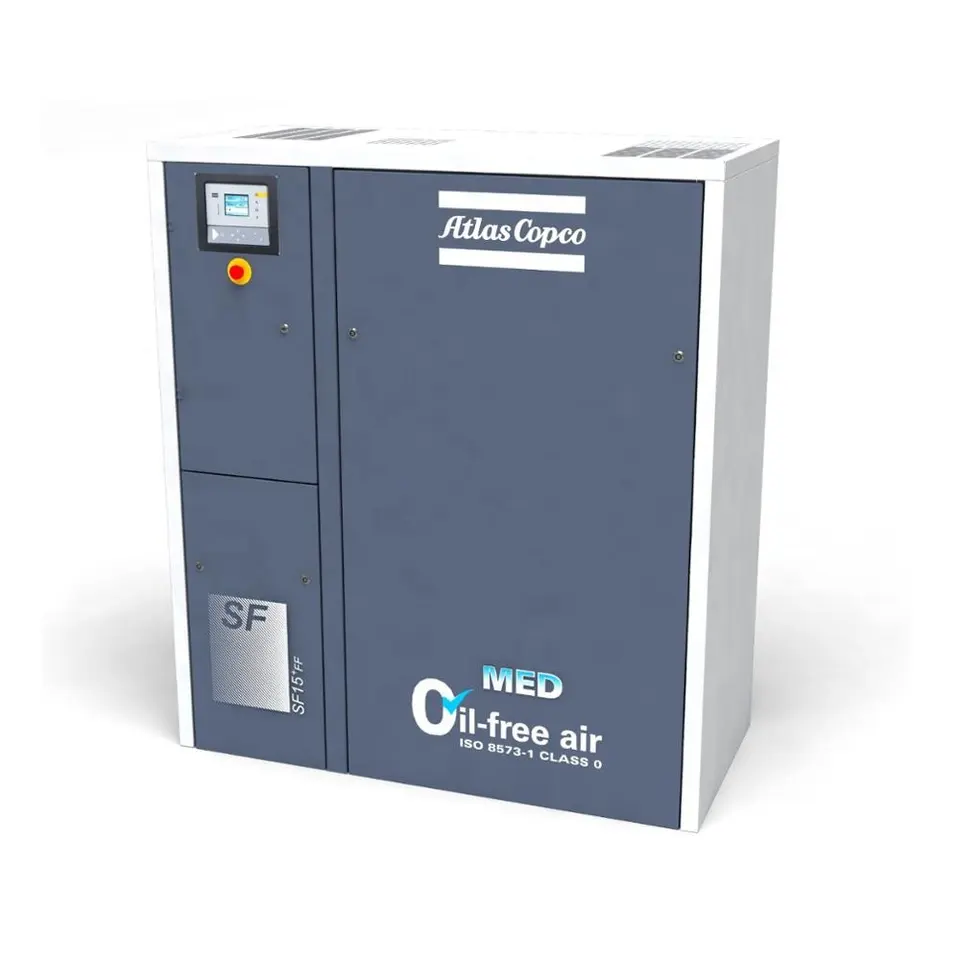

Atlas Copco Oil Free Scroll Air Compressor SF8+-22

Atlas Copco Oil Free Scroll Air Compressor SF8+-22

$ 49730 - 118425


Style:	SF8+ SF11+ SF15+ SF17+ SF22+ SFD11+ SFD15+ SFD22+
Availability:



Buy Now 12 13 Inquire Add to Basket

Name：Atlas Copco Oil Free Scroll Air Compressor
Type: Fixed Compressor
Lubrication Method: Oil Lubricated Air Compressor
Performance: Low Noise
Working Principle: Screw Compressor
Compressed Medium: Air
Product Model:SF8+-22
Condition: New
Other Models：Please Contact Us
Shipping & Delivery：
Shipping Time: 2-5 Working Days
Delivery Time：Air : 10-25Days

Model:
SF8+-22
Brand:
Atlas Copco
Code:
SRC2023-00142

buy scroll air compressor scroll air compressor china scroll air compressor company scroll air compressor cost scroll air compressor custom scroll air compressor factory scroll air compressor for sale scroll air compressor in china scroll air compressor manufacturer scroll air compressor odm

Product Description

Model Description

G：G Series

4：4 kw power

P/FF：P PACK， FF with dryer

8.5：8.5 bar Presssure

FM/TM：FM No Tank ，TM with Tank

SF8+-22 Technical Parameter

TYPE	Pressure		Capacity FAD			Motor power		Noise	Weight
Model	bar(e)	psig	l/s	m3/min	cfm	KW	hp	dB(A)	Kg
SF8+-22+(50/60 Hz)
SF8+	8	116	13.4	0.8	28.4	8	10	63	372
SF8+	10	145	11.4	0.68	24.2	8	10	63	372
SF11+	8	116	20.3	1.22	43	11	15	63	418
SF11+	10	145	15	0.9	31.8	11	15	63	418
SF15+	8	116	271	1.63	574	15	20	63	580
SF15+	10	145	23	1.38	48.7	15	20	63	580
SF17+	8	116	31.1	1.87	65.9	17	22	64	573
SF17+	10	145	23.7	1.42	50.2	17	22	64	573
SF22+	8	116	40.8	2.45	86.5	22	30	65	687
SF22+	10	145	30	1.8	63.6	22	30	65	687
SFD 11+-22+(50/60Hz)
SFD 11+	8	116	9.8	0.59	20.8	11	15	63	450
SFD 11+	10	145	76	0.46	16.1	11	15	63	450
SFD 15+	8	116	13.4	0.8	28.4	15	20	64	625
SFD 15+	10	145	11.4	0.68	24.2	15	20	64	625
SFD 22+	8	116	20.3	1.22	43	22	30	65	725
SFD 22+	10	145	15	0.9	31.8	22	30	65	725

Model	P/FF	LC/HC	Pressure(bar)	Number

SF8+	P	LC	8	8153602084
			10	8153602092
	P	HC	8	8153603009
			10	8153603017
	FF	LC	8	8153602209
			10	8153602217
	FF	HC	8	8153603207
			10	8153603215
SF11+	P	LC	8	8153602100
			10	8153602118
	P	HC	8	8153603025
			10	8153603033
	FF	LC	8	8153602225
			10	8153602233
	FF	HC	8	8153603223
			10	8153603231
SF15+	P	HC	8	8153603041
			10	8153603058
	FF	HC	8	8153603249
			10	8153603256
SF17+	P	HC	8	8153603066
			10	8153603074
	FF	HC	8	8153603264
			10	8153603272
SF22+	P	HC	8	8153603082
			10	8153603090
	FF	HC	8	8153603280
			10	8153603298
SFD11+	P	HC	8	8153605301
			10	8153605319
SFD15+	P	HC	8	8153605327
			10	8153605335
SFD22+	P	HC	8	8153605343
			10	8153605350

	LxWxH
	mm	inch
SF8+-22*
SF 8*-11+	1670×750×1230	65.7×29.5×48.4
SF 15+-22+	1628×750×1844	64.1×29.5×48.4
SFD 11+-22+
SFD 11+-22+	1628×750×1844	64.1×29.5×48.4
