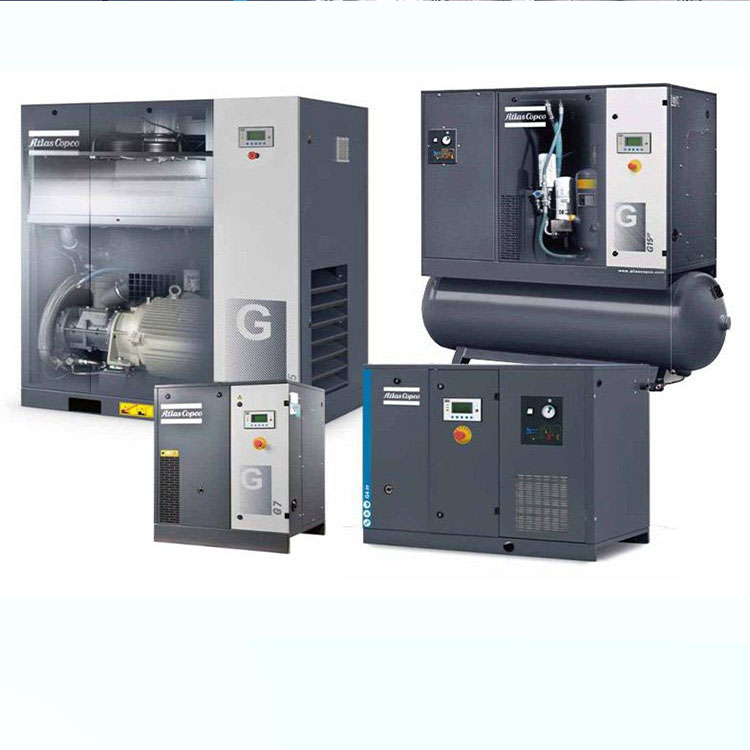

Atlas Copco G Series Oil Injection Screw Air Compressor G18-90

Atlas Copco G Series Oil Injection Screw Air Compressor G18-90

$ 18705 - 65415


Style:	G18P A FM G22P A FM G15P A TM G15FF A TM G18P A TM G18FF A TM G22P A TM G22FF A TM G30P A CHN G37P A CHN G45P A CHN G55P A CHN G75P A CHN G90P A CHN
Availability:



Buy Now 12 13 Inquire Add to Basket

Name：Atlas Copco G Series Oil Injection Screw Air Compressor
Type: Fixed Compressor
Lubrication Method: Oil Lubricated Air Compressor
Performance: Low Noise
Working Principle: Screw Compressor
Compressed Medium: Air
Product Model:G18-90
Condition: New
Other Models：Please Contact Us
Shipping & Delivery：
Shipping Time: 2-5 Working Days
Delivery Time：Air : 10-25Days

Model:
G18-90
Brand:
Atlas Copco
Code:
SRC2023-00141

Compressors Air china Compressors Air company Compressors Air cost Compressors Air custom Compressors Air factory Compressors Air manufacturer buy Compressors Air Compressors Air supplier Compressors Air price Compressors Air oem

Product Description

Model Description

G：G Series

4：4 kw power

P/FF：P PACK， FF with dryer

8.5：8.5 bar Presssure

FM/TM：FM No Tank ，TM with Tank

G2-90 Technical Parameter

230V 50Hz Single-phase
Model	pressure		Air Flow FAD			Nosie
Atlas	bar(e)	psi	l/s	m3/min	cfm	kw	hp
G2	8.5	123	4.3	0.26	9.2	2.2	3
G2	10.5	145	3.7	0.22	7.8	2.2	3
G3	8.5	123	6.4	0.38	13.4	3	4
G3	10.5	145	5.5	0.33	11.7	3	4
400V 50Hz 3-phase
Model	pressure		Air Flow FAD			Noise
Copco	bar(e)	psi	l/s	m3/min	cfm	kw	hp
G2	8.5	123	4.5	0.27	9.5	2.2	3
G2	10.5	145	4.3	0.26	9.2	2.2	3
G3	8.5	123	7	0.42	14.8	3	4
G3	10.5	145	5.8	0.35	12.4	3	4
G4	8.5	123	9.7	0.58	20.5	4	5
G4	10.5	145	8.8	0.53	18.7	4	5
G5	8.5	123	13.4	0.8	28.3	5.5	7
G5	10.5	145	12.3	0.74	26.1	5.5	7
Weight & Dimiensions
Model	Weight	L(mm)	W(mm)	H(mm)	Outlet diameter	Tank	Noise(A)
G2P FM	122	600	500	792	G1/2"	200L	58db
G2FF FM	150	980	500	792	G1/2"	200L	58db
G2FF TM	195	1438	500	1280	G1/2"	200L	58db
G3P FM	124	600	500	792	G1/2"	200L	59db
G3FF FM	152	980	500	792	G1/2"	200L	59db
G3FF TM	196	1438	500	1280	G1/2"	200L	59db
G4P FM	125	600	500	792	G1/2"	200L	60db
G4FF FM	153	980	500	792	G1/2"	200L	60db
G4FF TM	198	1438	500	1280	G1/2"	200L	60db
G5P FM	127	600	500	792	G1/2"	200L	63db
G5FF FM	155	980	500	792	G1/2"	200L	63db
G5FF TM	200	1438	500	1280	G1/2"	200L	63db

50Hz VERSION							Without dryer tank	With only tank	With tank dryer filter
4kw 5.5kw 7.5kw Atlas Copco Integrated Air Comprssor							Without dryer tank	With only tank	With tank dryer filter
Model	bar/psi	l/s	m3/min	cfm	kw	hp	kg	kg	kg
G4	10/145	7.8	0.47	17	4	5	/	175	195
G5	10/145	10	0.6	21	5.5	7	/	178	198
G7	7.5/109	20.3	1.22	43	7.5	10	221	392	435
	8.5/123	19	1.14	40.2	7.5	10	221	392	435
	10/145	16.9	1.01	35.8	7.5	10	221	392	435
	10/145	13.1	0.79	27.7	7.5	10	221	392	435
G11	7.5/109	29.1	1.75	61.6	11	15	238	409	452
	8.5/123	26.6	1.6	56.3	11	15	238	409	452
	10/145	24.3	1.46	51.5	11	15	238	409	452
	10/145	20	1.2	42.4	11	15	238	409	452

50Hz VERSION							Without dryer tank	With only tank	With tank dryer filter
15kw 18kw 22kw Atlas Copco Integrated Air Comprssor							Without dryer tank	With only tank	With tank dryer filter
Model	bar/psi	l/s	m3/min	cfm	kw	hp	kg	kg	kg
G15	7.5/109	43.7	2.62	92.6	15	20	378	616	701
	8.5/123	40	2.4	84.7	15	20	378	616	701
	10.5/152	36.1	2.17	76.5	15	20	378	616	701
	13/189	30.5	1.83	64.6	15	20	378	616	701
G18	7.5/109	55.3	3.32	111.2	18.5	25	406	644	729
	8.5/123	52.2	3.13	106.3	18.5	25	406	644	729
	10.5/152	45.7	2.74	92.1	18.5	25	406	644	729
	13/189	37.5	2.25	78.8	18.5	25	406	644	729
G22	7.5/109	62.5	3.75	127.5	22	30	421	659	744
	8.5/123	58.3	3.5	123.5	22	30	421	659	744
	10.5/152	51.8	3.1	109.5	22	30	421	659	744
	13/189	45	2.7	95.3	22	30	421	659	744

G30-G90 50Hz Atlas Copco Air Compressor
Model	Pressure		Air Flow FAD			Power		Noise
Atlas	bar	psi	l/s	m3/min	cfm	kw	hp	db
G30	7.5	7.5	109	5.4	190.6	30	40	72
	8.5	8.5	123	5.18	183	30	40	72
	10	10	145	4.79	169	30	40	72
G37	7.5	7.5	109	6.87	242.5	37	50	72
	8.5	8.5	123	6.38	225.4	37	50	72
	10	10	145	5.92	209	37	50	72
G45	7.5	7.5	109	7.96	281.1	45	60	73
	8.5	8.5	123	7.6	268.4	45	60	73
	10	10	145	7.01	247.8	45	60	73

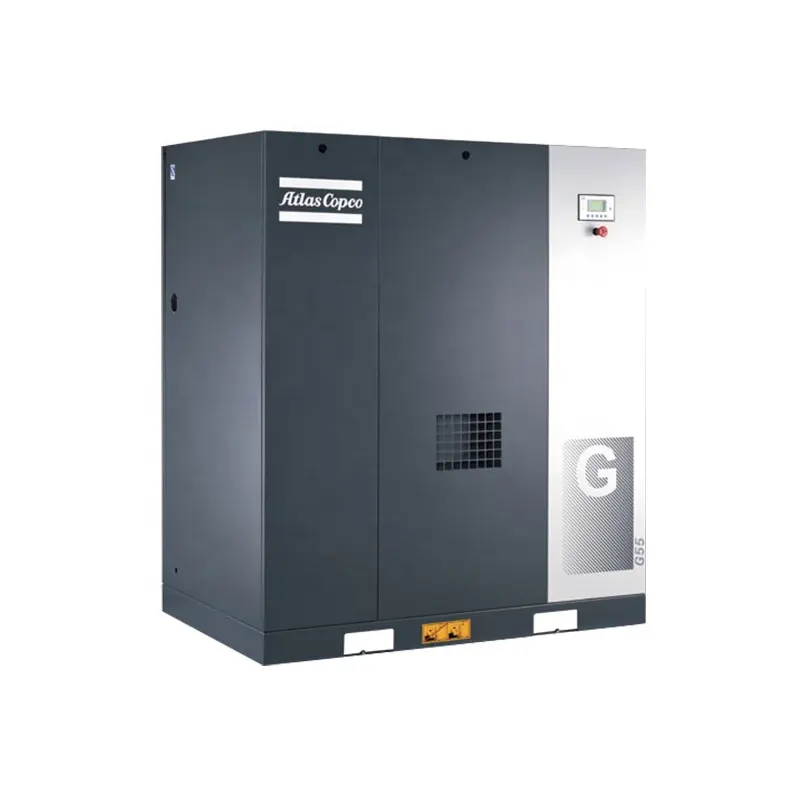

G55	7.5	7.5	109	10	353.1	55	75	72
	8.5	8.5	123	9.42	332.5	55	75	72
	10.5	10.5	152	8.78	309.9	55	75	72
G75	7.5	7.5	109	13.26	468.1	75	100	76
	8.5	8.5	123	12.43	438.8	75	100	78
	10.5	10.5	152	11.26	3973	75	100	76
G90	7.5	7.5	109	16.36	577.4	90	120	75
	8.5	8.5	123	16	564.9	90	120	75
	10.5	10.5	152	14.53	5128	90	120	75
