QPN-15~QPN-225
SRC2023-00130
| QPN10~225 Technical parameters of refrigeration air dryer | |||||||||
| Module | FAD | Refrigorant | Power | Power supply | Size(Length*width*Height） | Weight | Outlet Size | ||
| m³/min | W | V/Ph/Hz | mm | kg | |||||
| QPN 10 | 1 | R134a | 355 | 230/1/50 | 352 | 430 | 445 | 30 | G3/4" |
| QPN 15 | 1.5 | R134a | 400 | 230/1/50 | 550 | 370 | 800 | 32 | G3/4" |
| QPN 21 | 2.1 | R134a | 453 | 230/1/50 | 550 | 370 | 800 | 36 | G3/4" |
| QPN 35 | 3.5 | R410A | 1170 | 230/1/50 | 520 | 500 | 800 | 60 | G1" |
| QPN 45 | 4.5 | R410A | 1200 | 230/1/50 | 550 | 600 | 980 | 68 | G1.5" |
| QPN 60 | 6 | R410A | 1312 | 230/1/50 | 550 | 600 | 980 | 75 | G1.5" |
| QPN 75 | 7.5 | R410A | 1443 | 230/1/50 | 550 | 600 | 980 | 85 | G2" |

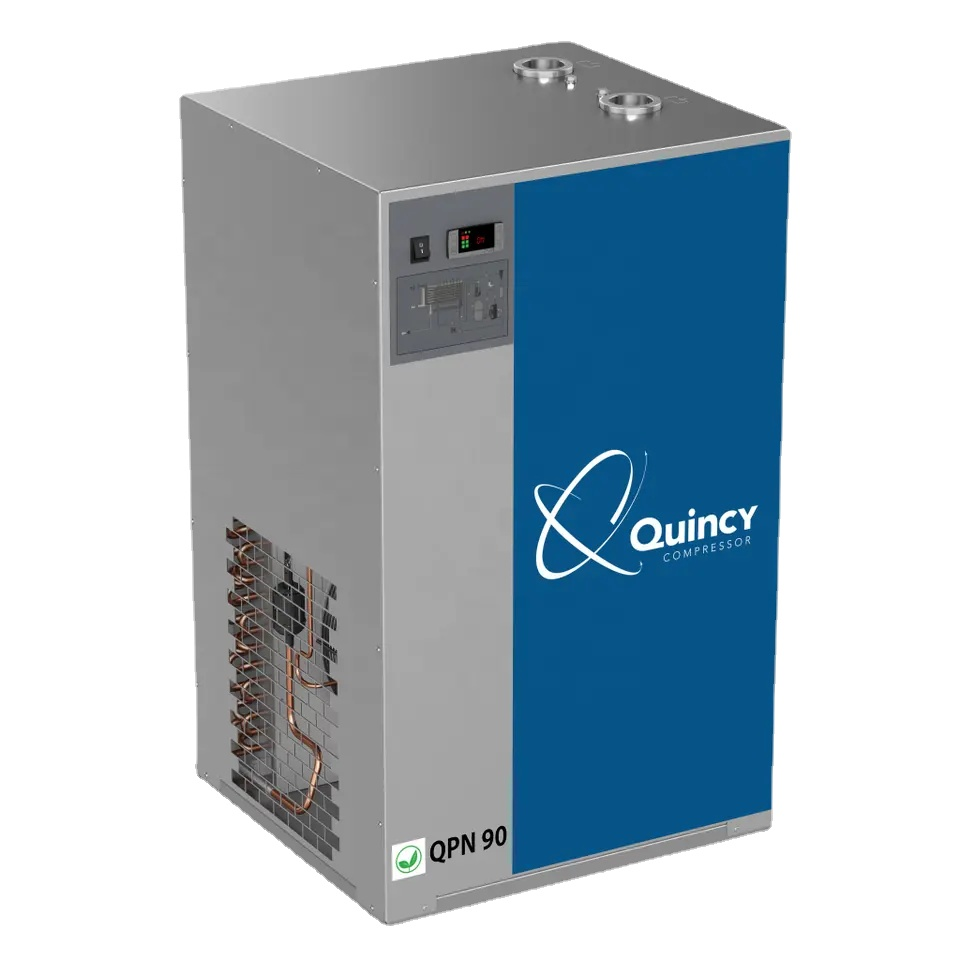

| QPN 90 | 9 | R410A | 2143 | 230/1/50 | 900 | 750 | 1000 | 120 | G2" |
| QPN 115 | 11.5 | R410A | 2240 | 230/1/50 | 1025 | 660 | 1120 | 130 | G2.5" |
| QPN 150 | 15 | R410A | 2740 | 230/1/50 | 1025 | 660 | 1120 | 135 | G2.5" |
| QPN 175 | 17.5 | R410A | 3190 | 230/1/50 | 1025 | 660 | 1120 | 150 | G2.5" |
| QPN 225 | 22.5 | R410A | 3760 | 230/1/50 | 1025 | 660 | 1120 | 155 | G2.5" |
