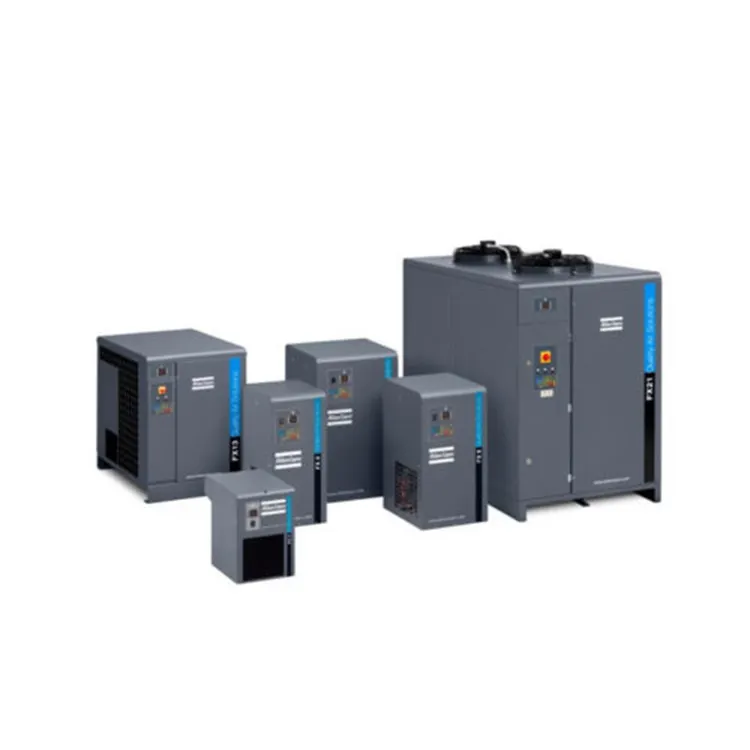

Atlas Copco Refrigerated Air Dryer F20 F25 F30 F35 F45 F55

Atlas Copco Refrigerated Air Dryer F20 F25 F30 F35 F45 F55

$ 5500 - 12500


Style:	Water Cooled-F20 Water Cooled-F25 Water Cooled-F35 Water Cooled-F45 Water Cooled-F50 Water Cooled-F60 Water Cooled-F75 Water Cooled-F100 Water Cooled-F125 Water Cooled-F150 Water Cooled-F200 Water Cooled-F250 Water Cooled-F300 Water Cooled-F350 Water Cooled-F400 Air Cooled -F20 Air Cooled -F25 Air Cooled -F35 Air Cooled -F45 Air Cooled -F50 Air Cooled -F60 Air Cooled -F75 Air Cooled -F100
Availability:



Buy Now 12 13 Inquire Add to Basket

Name： Air Compressor Dryer
Part Number:F20-F400
Application: Air Compressor
Type:Air Compressor Dryer
Product:OEM/ODM, Replacement
Condition: New
Other Models：Please Contact Us
Shipping & Delivery：
Shipping Time: 2-5 Working Days
Delivery Time：10-25 days

Model:
F20-F400
Code:
SRC2023-00128

air compressor dryer compressed air dryer Air Dryer For Compressor Compressor Air Dryer Refrigerated Air Dryer Atlas Copco Air Dryer

TECHNICAL SPECIFICATIONS

Dimensions and weight for indication only

Air cooled refrigerant dryers

Model	Cooling	Outlet pressure dewpoint +3-10℃/+38-50 °F				Max.working pressure		Bectrical supply	Dimersions						Weight		Air connections
	Cooling	Inlet capacity		Pressure drop		Max.working pressure		Bectrical supply	Length		Width		Height		Weight		Air connections
	A/W	l/s	cfm	bar	psi	bar	psi		mm	inch	mm	inch	mm	inch	kg	lb
F20	A	330	700	0.15	2.18	10	145	380V3/50Hz	1033	40.3	800	31.2	1221	47.6	200	440	G2.5"
F25	A	420	890	0.15	2.18	10	145	380V3/50Hz	1033	40.3	800	31.2	1221	47.6	230	506	G3"
F35	A	583	1236	0.15	2.18	10	145	380V3/50Hz	1133	44.2	1000	39	1700	66.3	325	715	DN100
F45	A	750	1590	0.15	2.18	10	145	380V3/50Hz	1133	44.2	1000	39	1700	66.3	350	770	DN100
F50	A	825	1749	0.15	2.18	10	145	380V3/50Hz	1133	44.2	1000	39	1700	66.3	350	770	DN100
F60	A	1000	2120	0.16	2.32	10	145	380V3/50Hz	1644	64.1	1000	39	1883	73.4	550	1210	DN125
F75	A	1250	2650	0.16	2.32	10	145	380V3/50Hz	1644	64.1	1000	39	1883	73.4	600	1320	DN150
F100	A	1665	3530	0.16	2.32	10	145	380V3/50Hz	2100	81.9	1150	44.9	1900	74.1	700	1540	DN150

Water cooled refrigerant dryers

Model	Cooling	Outlet pressure dewpoint +3-10℃/+38-50 °F				Max.working pressure		Bectrical supply	Dimersions						Weight		Air connections
	Cooling	Inlet capacity		Fressue drop		Max.working pressure		Bectrical supply	Length		Width		Height		Weight		Air connections
	A/W	l/s	cfm	bar	psi	bar	psi		mm	inch	mm	inch	mm	inch	kg	lb
F20	W	330	700	0.15	2.18	10	145	380V3/50Hz	1131	44.1	800	31.2	1221	47.6	200	440	G2.5"
F25	W	420	890	0.15	2.18	10	145	380V3/50Hz	1142	44.5	800	31.2	1221	47.6	230	506	G3"
F35	W	583	1236	0.15	2.18	10	145	380V3/50Hz	1133	44.2	1000	39	1550	60.5	325	715	DN100
F45	W	750	1590	0.15	2.18	10	145	380V3/50Hz	1133	44.2	1000	39	1550	60.5	350	770	DN100
F50	W	825	1749	0.15	2.18	10	145	380V3/50Hz	1133	44.2	1000	39	1550	60.5	350	770	DN100
F60	W	1000	2120	0.16	2.32	10	145	380V3/50Hz	1644	64.1	1000	39	1750	68.3	550	1210	DN125
F75	W	1250	2650	0.16	2.32	10	145	380V3/50Hz	1644	64.1	1000	39	1750	68.3	600	1320	DN150
F100	W	1665	3530	0.16	2.32	10	145	380V3/50Hz	2100	81.9	1150	44.9	1750	68.3	700	1540	DN150
F125	W	2085	4420	0.16	2.32	10	145	380V3/50Hz	2100	81.9	1150	44.9	1750	68.3	750	1650	DN150
F150	W	2500	5300	0.16	2.32	10	145	380V3/50Hz	2400	93.6	1150	44.9	1750	68.3	850	1870	DN200
F200	W	3335	7070	0.16	2.32	10	145	380V3/50Hz	2400	93.6	1150	44.9	1750	68.3	950	2090	DN200
F250	W	4170	8840	0.16	2.32	10	145	380V3/50Hz	2600	101.4	1650	64.4	1900	74.1	1700	3740	DN250
F300	W	5000	10600	0.16	2.32	10	145	380V3/50Hz	2600	101.4	1650	64.4	1900	74.1	1900	4180	DN250
F350	W	5840	12381	0.16	2.32	10	145	380V3/50Hz	3300	128.7	1650	64.4	1900	74.1	2100	4620	DN300
F400	W	6665	14130	0.16	2.32	10	145	380V3/50Hz	3300	128.7	1650	64.4	1900	74.1	2300	5060	DN300

cheap air dryer

TECHNICAL SPECIFICATIONS
