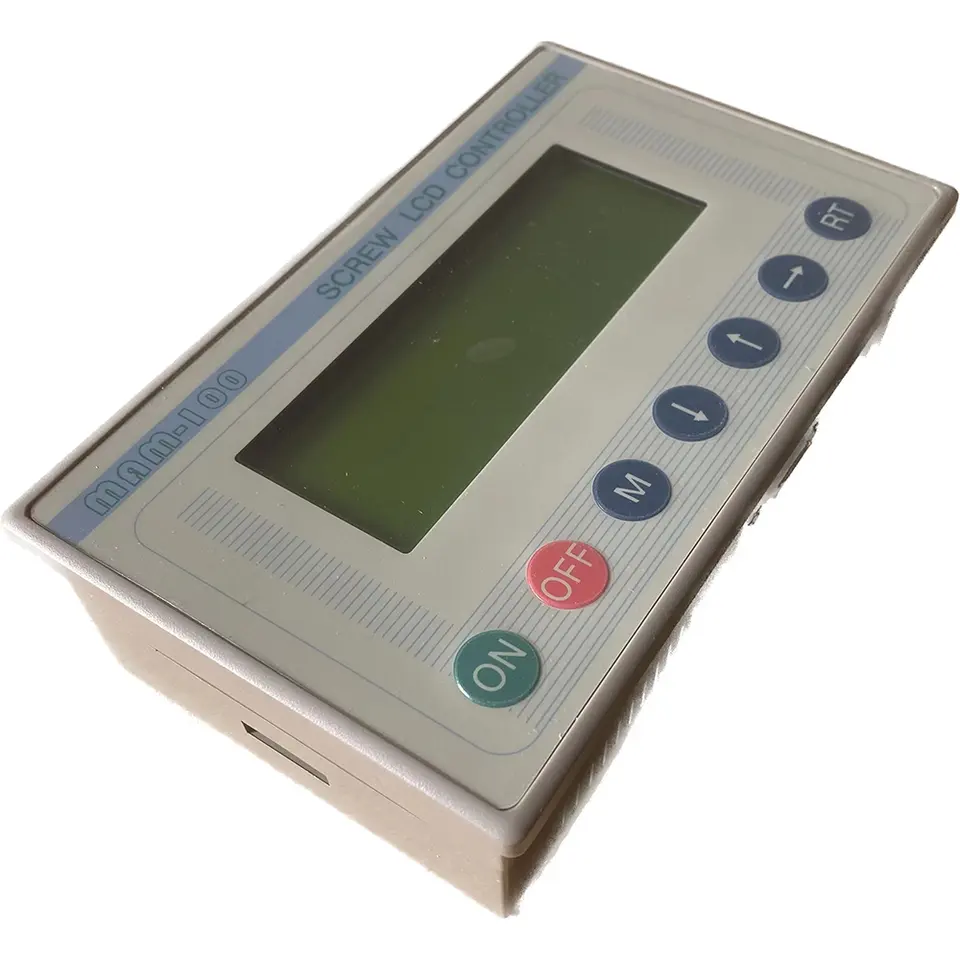

MAM100
SRC2023-0056
Black
Please inform you of the machine model before placing an order so that the correct program can be entered
Typically, the lektronikon computer controller has the following functions:
Control compressor
Protecting the compressor
Monitoring components under maintenance conditions
Automatic restart after power outage
Automatic control of compressor operation
The computer controller can automatically load and unload the compressor to maintain the pressure of the pipeline network within a settable limit range. There are several settable settings to consider, such as unloading and loading pressure, minimum shutdown time, and maximum number of motor starts.
The computer controller will stop running the compressor under any possible conditions to reduce power consumption, and automatically restart the compressor when the pipeline pressure drops. If the expected unloading period is too short, the compressor will run continuously to prevent a too short shutdown period,
Can set up a time based automatic start/stop command. Please note that even after manually stopping the compressor, a start command may still be executed (if the start command has been set and activated)
Protecting the compressor
Shutdown
The compressor is equipped with a sensor. If the measured value of one of the sensors exceeds the set shutdown standard, the compressor will stop running. This will be displayed on the display screen (1), and the comprehensive alarm indicator light (2) will flash, remove the obstacle and reset the information. Also refer to the input menu
We mainly sell
Atlas Copco, Ingersoll Rand, Sullair, Doosan, CompAir, GD, Quincy, Kaishan air compressors and original and replacement parts of the above brands for stationary compressors and portable mobile compressors，Air pipeline and leak detection equipment And equipment parts for compressed air
If you cannot find the part number you need, please contact us
